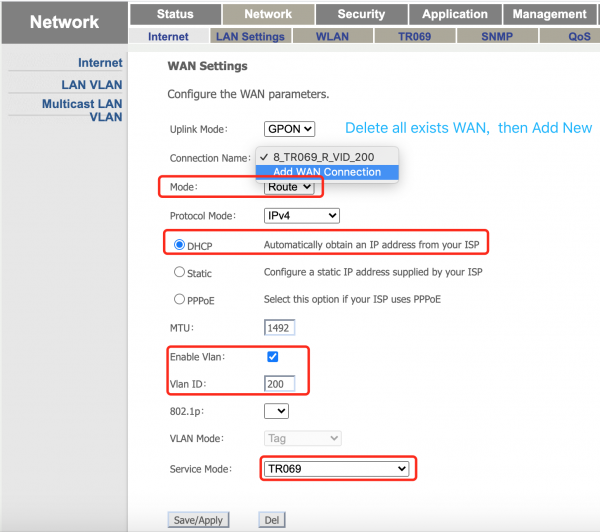

remove all WAN connections, then create a new WAN connection for TR069, service mode is TR069, make sure it is the first WAN link.

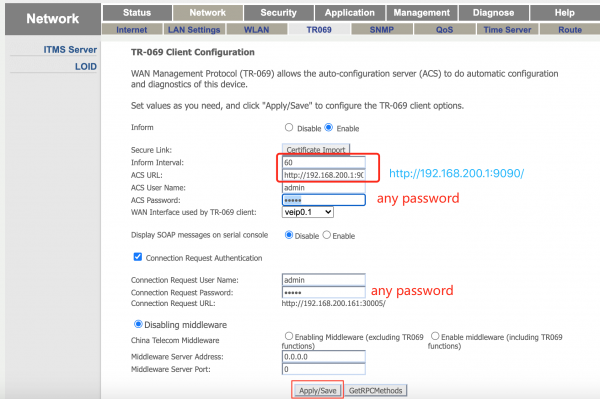

replace the IP address in ACS URL according to your network.

Normally, the IP is the TR069 VLAN interface's address of LAN.

ACS UserName/Password, Connection Request UserName/Password can be any string.

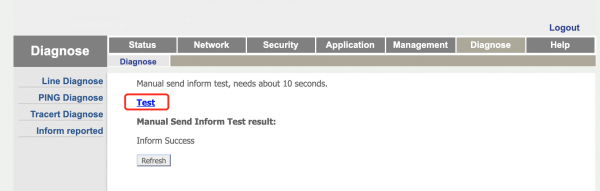

Click Test, then Refresh, Inform Success means it is works.

Then you can see then ONU is discovered by TR069 server.
